All Constellations »  Pegasus »  Deep Sky Objects »

IC 1513 - Spiral Galaxy in Pegasus

Above the horizon.  Rise: 11:49 | Tran: 18:46 | Set: 1:47
Alt: 18.58°   Az: 265.07°   Direction: West

IC 1513 is a Spiral Galaxy in the Pegasus constellation. IC 1513 is situated close to the celestial equator and, as such, it is at least partly visible from both hemispheres in certain times of the year. Given its B magnitude of 15.1, IC 1513 is visible with the help of a telescope having an aperture of 20 inches (500mm) or more.

The image below is a photograph of IC 1513 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5000x0.5000 degrees (30.00x30.00 arcmins).

Image of IC 1513 - Spiral Galaxy in Pegasus star
/>
DSS2 image of IC 1513 in the Red band. The green region on the image is a representation of the major (1.1 arcmin) and minor (0.4 arcmin) axes of the object's apparent size.

Celestial Coordinates

Apparent

23h 54m 45s
+11° 27’ 22”
04h 57m 56s
04h 52m 41s

J2000

23h 53m 29s
+11° 19’ 03”

Finder Chart

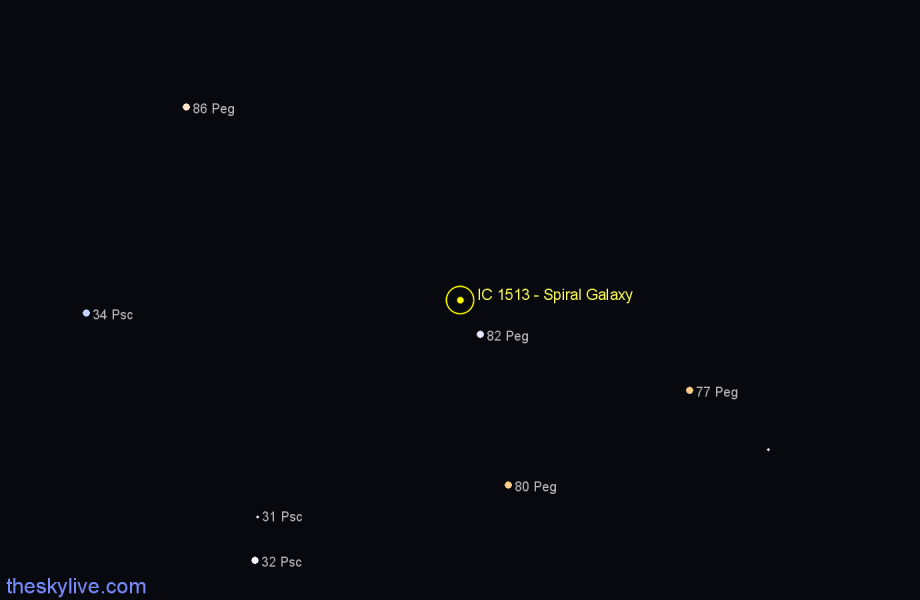

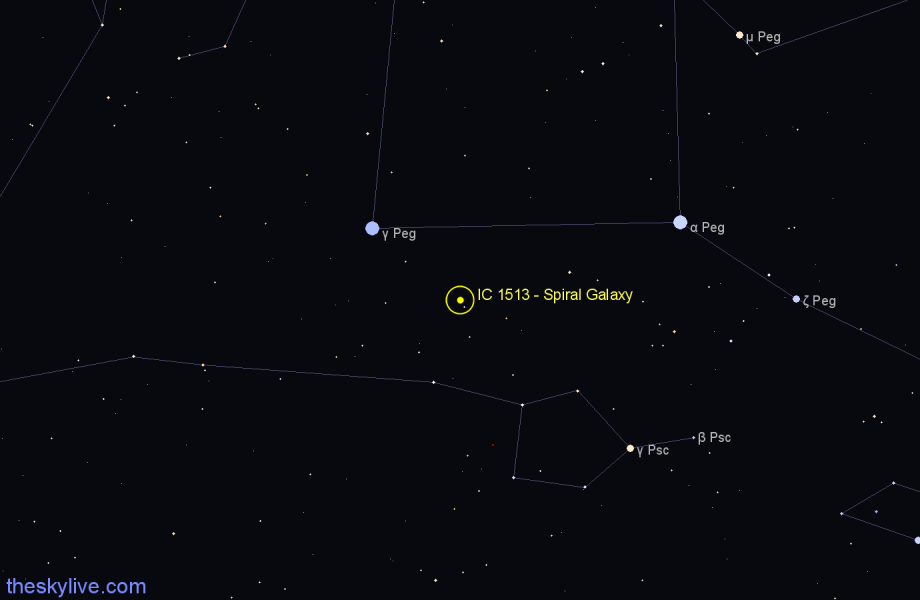

The simplified sky charts below show the position of IC 1513 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

loader
  Loading map...
Finder chart for IC 1513 - Spiral Galaxy in Pegasus.

loader
  Loading map...
Finder chart for IC 1513 - Spiral Galaxy in Pegasus.

Photometric Information

The following table lists the magnitude of IC 1513 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

15.1
11.96
11.23
11.04

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of IC 1513.

23.45 mag/arcsec2

Apparent Size

The following table reports IC 1513 apparent angular size. The green area displayed on top of the DSS2 image of IC 1513 is a visual representation of it.
1.1 arcmin
0.4 arcmin
106°

Morphological Classification

IC 1513 - Spiral Galaxy in Pegasus is classified as Spiral (SAab) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of IC 1513 - Spiral Galaxy in Pegasus in the Hubble de Vaucouleurs sequence.

IC 1513 - Spiral Galaxy in Pegasus
Visualization of the morphological classification of IC 1513 - Spiral Galaxy in Pegasus, Spiral (SAab).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Rise and Set Times

Location: Greenwich, UK
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

Today's IC 1513 - Spiral Galaxy in Pegasus rise, transit and set times from Greenwich, UK are the following (all times relative to the local timezone Europe/London):

Azimuth: 78.5°
Max altitude: 50.0°
Azimuth: 281.5°
