IC 3505 - Barred Spiral Galaxy in Coma Berenices

Below the horizon.  Rise: 0:08 | Tran: 7:29 | Set: 14:50
Alt: -22.06°   Az: 349.03°   Direction: North

IC 3505 is a Barred Spiral Galaxy in the Coma Berenices constellation. IC 3505 is situated close to the celestial equator and, as such, it is at least partly visible from both hemispheres in certain times of the year. Given its B magnitude of 15.3, IC 3505 is visible with the help of a telescope having an aperture of 20 inches (500mm) or more.

The image below is a photograph of IC 3505 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5000x0.5000 degrees (30.00x30.00 arcmins).

Image of IC 3505 - Barred Spiral Galaxy in Coma Berenices star
/>
DSS2 image of IC 3505 in the Red band. The green region on the image is a representation of the major (0.85 arcmin) and minor (0.35 arcmin) axes of the object's apparent size.

Celestial Coordinates

Apparent

12h 35m 25s
+15° 49’ 51”
11h 17m 45s
23h 53m 10s

J2000

12h 34m 09s
+15° 58’ 05”

Finder Chart

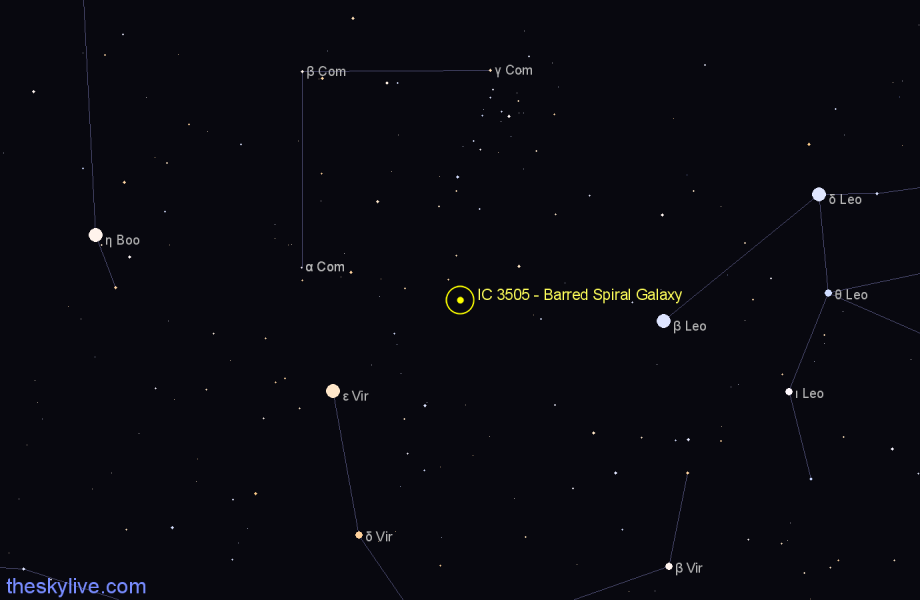

The simplified sky charts below show the position of IC 3505 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

loader
  Loading map...
Finder chart for IC 3505 - Barred Spiral Galaxy in Coma Berenices.

loader
  Loading map...
Finder chart for IC 3505 - Barred Spiral Galaxy in Coma Berenices.

Photometric Information

The following table lists the magnitude of IC 3505 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

15.3
12.41
11.72
11.31

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of IC 3505.

22.68 mag/arcsec2

Apparent Size

The following table reports IC 3505 apparent angular size. The green area displayed on top of the DSS2 image of IC 3505 is a visual representation of it.
0.85 arcmin
0.35 arcmin
172°

Morphological Classification

IC 3505 - Barred Spiral Galaxy in Coma Berenices is classified as Barred Spiral (Bcd) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of IC 3505 - Barred Spiral Galaxy in Coma Berenices in the Hubble de Vaucouleurs sequence.

IC 3505 - Barred Spiral Galaxy in Coma Berenices
Visualization of the morphological classification of IC 3505 - Barred Spiral Galaxy in Coma Berenices, Barred Spiral (Bcd).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Rise and Set Times

Location: Greenwich, UK
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

Today's IC 3505 - Barred Spiral Galaxy in Coma Berenices rise, transit and set times from Greenwich, UK are the following (all times relative to the local timezone Europe/London):

Azimuth: 74.2°
Max altitude: 54.4°
Azimuth: 285.8°
