Other deep sky objects in Corona Borealis
All Constellations »  Corona Borealis »  Deep Sky Objects »

NGC 6117 - Spiral Galaxy in Corona Borealis

Altitude: -1.3°   Azimuth: 4.6°   Direction: North

NGC 6117 is a Spiral Galaxy in the Corona Borealis constellation. NGC 6117 is situated north of the celestial equator and, as such, it is more easily visible from the northern hemisphere.

NGC 6117
Galaxy
Corona Borealis

NGC 6117 is below the horizon from Greenwich, United Kingdom edit_location_alt.

Altitude: -1.3°
Azimuth: 4.6°
Direction: North

See also NGC 6117 rise and set times.

Given its B magnitude of 14.7, NGC 6117 is visible with the help of a telescope having an aperture of 20 inches (500mm) or more.

Available Resources for NGC 6117 - Spiral Galaxy in Corona Borealis

Photometric information of NGC 6117

The following table lists the magnitude of NGC 6117 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

14.7
12.3
11.59
11.25

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 6117.

23.31 mag/arcsec2

Apparent size of NGC 6117

The following table reports NGC 6117 apparent angular size. The green area displayed on top of the DSS2 image of NGC 6117 is a visual representation of it.
1.05 arcmin
0.87 arcmin
84°

Digitized Sky Survey image of NGC 6117

The image below is a photograph of NGC 6117 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5x0.5 degrees (30x30 arcmins).

Image of NGC 6117 - Spiral Galaxy in Corona Borealis star
/>
DSS2 image of NGC 6117 in the Red band. The green region on the image is a representation of the major (1.05 arcmin) and minor (0.87 arcmin) axes of the object's apparent size.

NGC 6117 - Spiral Galaxy in Corona Borealis morphological classification

NGC 6117 - Spiral Galaxy in Corona Borealis is classified as Spiral (SAc) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 6117 - Spiral Galaxy in Corona Borealis in the Hubble de Vaucouleurs sequence.

NGC 6117 - Spiral Galaxy in Corona Borealis
Visualization of the morphological classification of NGC 6117 - Spiral Galaxy in Corona Borealis, Spiral (SAc).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Celestial coordinates and finder chart of NGC 6117

Celestial coordinates for the J2000 equinox of NGC 6117 are provided in the following table:

16h 19m 18s
+37° 05’ 42”

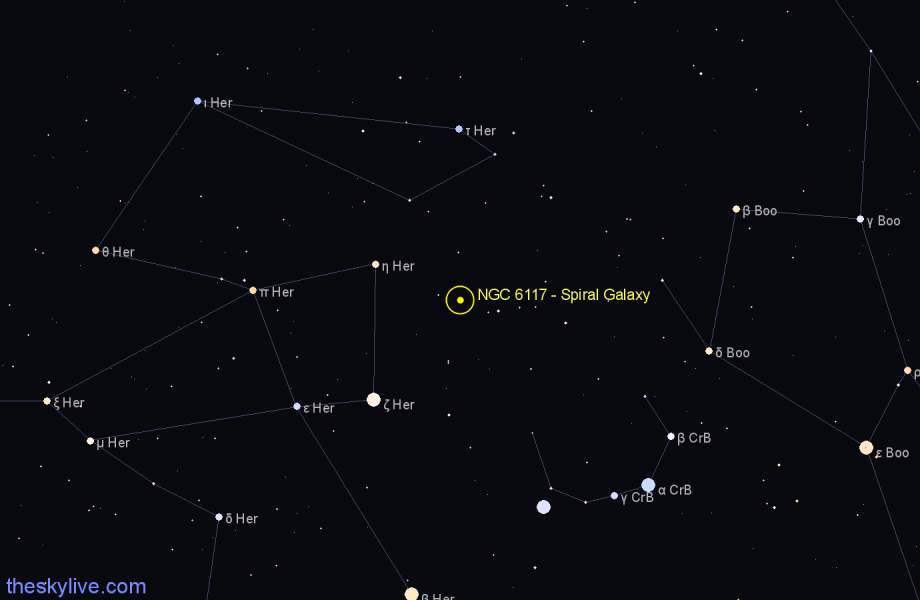

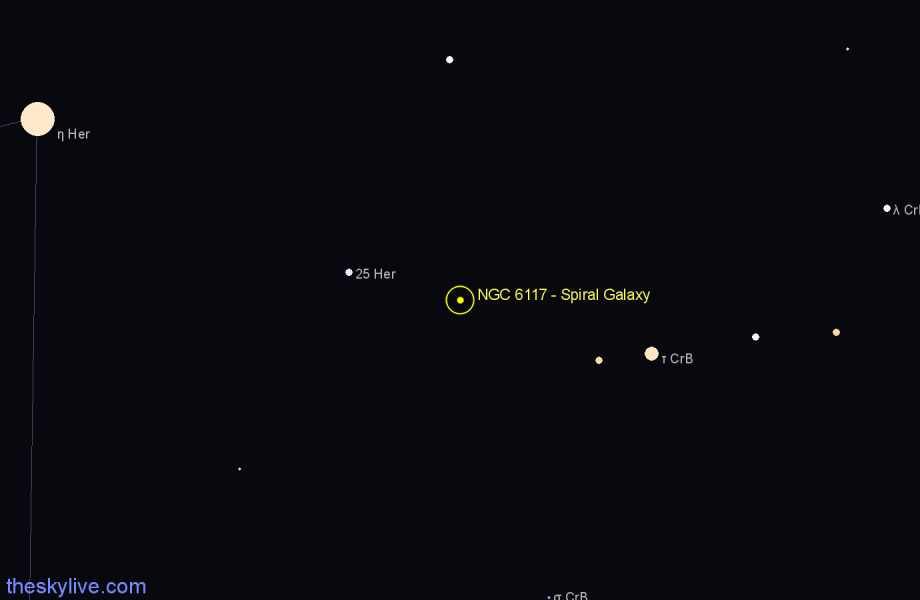

The simplified sky charts below show the position of NGC 6117 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

Finder chart NGC 6117 - Spiral Galaxy in Corona Borealis star
Simplified finder chart for NGC 6117 - Spiral Galaxy in Corona Borealis.

Finder chart NGC 6117 - Spiral Galaxy in Corona Borealis star
Simplified finder chart for NGC 6117 - Spiral Galaxy in Corona Borealis.

Rise ans set times of NGC 6117 from your location

Location: Greenwich, United Kingdom edit_location_alt
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

Today's NGC 6117 - Spiral Galaxy in Corona Borealis rise, transit and set times from Greenwich, United Kingdom edit_location_alt are the following (all times relative to the local timezone Europe/London):

Azimuth: 52.9°
Max altitude: 75.6°
Azimuth: 307.1°
NGC 6117 - Spiral Galaxy in Corona Borealis is below the horizon from Greenwich, United Kingdom
