All Constellations »  Libra »  Deep Sky Objects »

NGC 5766 - Spiral Galaxy in Libra

Below the horizon.  Rise: 10:16 | Tran: 14:16 | Set: 18:16
Alt: -54.37°   Az: 42.03°   Direction: North-East

NGC 5766 is a Spiral Galaxy in the Libra constellation. NGC 5766 is situated close to the celestial equator and, as such, it is at least partly visible from both hemispheres in certain times of the year. Given its B magnitude of 14.2, NGC 5766 is visible with the help of a telescope having an aperture of 14 inches (350mm) or more.

The image below is a photograph of NGC 5766 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5000x0.5000 degrees (30.00x30.00 arcmins).

Image of NGC 5766 - Spiral Galaxy in Libra star
/>
DSS2 image of NGC 5766 in the Red band. The green region on the image is a representation of the major (0.96 arcmin) and minor (0.63 arcmin) axes of the object's apparent size.

Celestial Coordinates

Apparent

14h 54m 35s
-21° 29’ 39”
13h 39m 08s
04h 33m 43s

J2000

14h 53m 09s
-21° 23’ 39”

Finder Chart

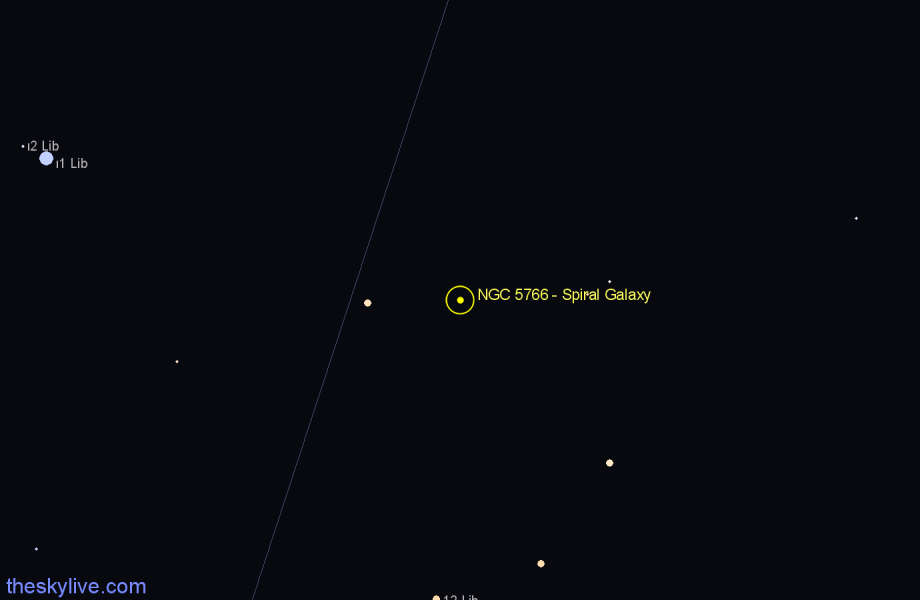

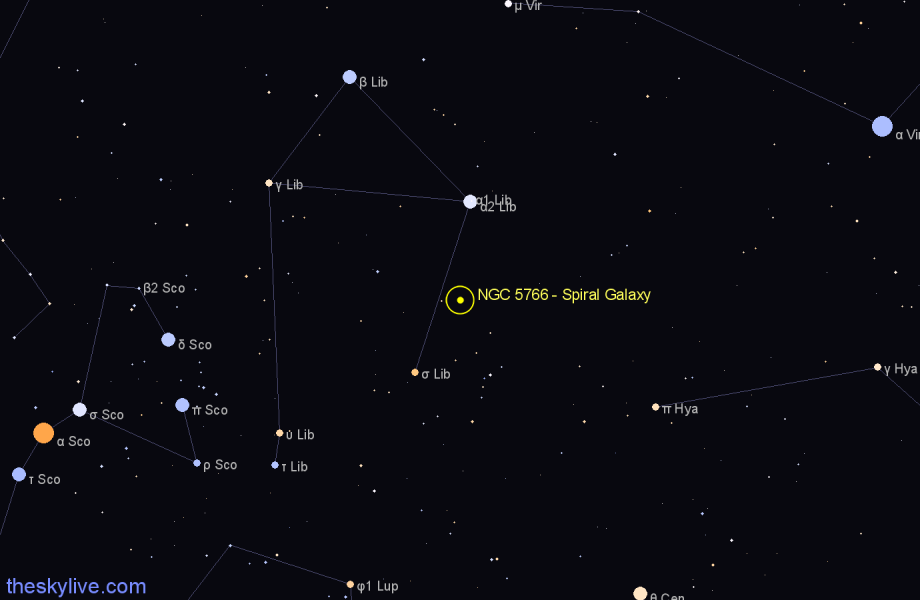

The simplified sky charts below show the position of NGC 5766 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

Finder chart NGC 5766 - Spiral Galaxy in Libra star
Simplified finder chart for NGC 5766 - Spiral Galaxy in Libra.

Finder chart NGC 5766 - Spiral Galaxy in Libra star
Simplified finder chart for NGC 5766 - Spiral Galaxy in Libra.

Photometric Information

The following table lists the magnitude of NGC 5766 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

14.2
11.28
10.54
10.31

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 5766.

22.53 mag/arcsec2

Apparent Size

The following table reports NGC 5766 apparent angular size. The green area displayed on top of the DSS2 image of NGC 5766 is a visual representation of it.
0.96 arcmin
0.63 arcmin
145°

Morphological Classification

NGC 5766 - Spiral Galaxy in Libra is classified as Spiral (SAbc) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 5766 - Spiral Galaxy in Libra in the Hubble de Vaucouleurs sequence.

NGC 5766 - Spiral Galaxy in Libra
Visualization of the morphological classification of NGC 5766 - Spiral Galaxy in Libra, Spiral (SAbc).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Rise and Set Times

Location: Greenwich, UK
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

Today's NGC 5766 - Spiral Galaxy in Libra rise, transit and set times from Greenwich, UK are the following (all times relative to the local timezone Europe/London):

Azimuth: 111.5°
Max altitude: 17.0°
Azimuth: 248.5°
