NGC 5768 - Intermediate Spiral Galaxy in Libra

NGC 5768 is a Intermediate Spiral Galaxy in the Libra constellation. NGC 5768 is situated close to the celestial equator and, as such, it is at least partly visible from both hemispheres in certain times of the year.

NGC 5768
Galaxy
Libra
  • NGC 5768 is below the horizon from Greenwich, United Kingdom edit_location_alt. See also rise and set times.
  • Given its B magnitude of 14.2, NGC 5768 is visible with the help of a telescope having an aperture of 14 inches (350mm) or more.
Available Resources for NGC 5768 - Intermediate Spiral Galaxy in Libra

Photometric information of NGC 5768

The following table lists the magnitude of NGC 5768 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

14.2
10.75
10.07
9.73

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 5768.

22.63 mag/arcsec2

Apparent size of NGC 5768

The following table reports NGC 5768 apparent angular size. The green area displayed on top of the DSS2 image of NGC 5768 is a visual representation of it.
1.28 arcmin
0.97 arcmin
111°

Digitized Sky Survey image of NGC 5768

The image below is a photograph of NGC 5768 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5x0.5 degrees (30x30 arcmins).

Image of NGC 5768 - Intermediate Spiral Galaxy in Libra star
/>
DSS2 image of NGC 5768 in the Red band. The green region on the image is a representation of the major (1.28 arcmin) and minor (0.97 arcmin) axes of the object's apparent size.

NGC 5768 - Intermediate Spiral Galaxy in Libra morphological classification

NGC 5768 - Intermediate Spiral Galaxy in Libra is classified as Intermediate Spiral (SABc) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 5768 - Intermediate Spiral Galaxy in Libra in the Hubble de Vaucouleurs sequence.

NGC 5768 - Intermediate Spiral Galaxy in Libra
Visualization of the morphological classification of NGC 5768 - Intermediate Spiral Galaxy in Libra, Intermediate Spiral (SABc).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Celestial coordinates and finder chart of NGC 5768

Celestial coordinates for the J2000 equinox of NGC 5768 are provided in the following table:

14h 52m 08s
-02° 31’ 46”

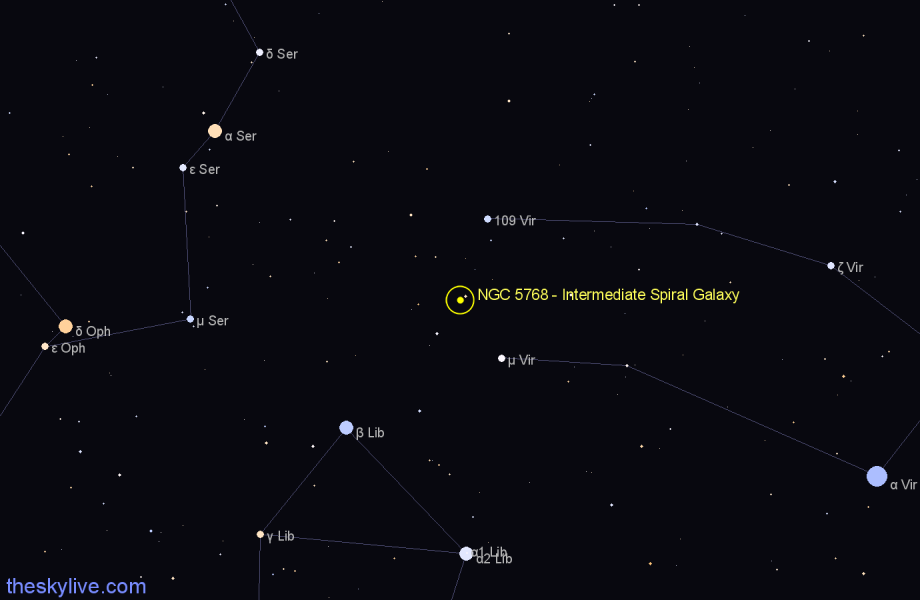

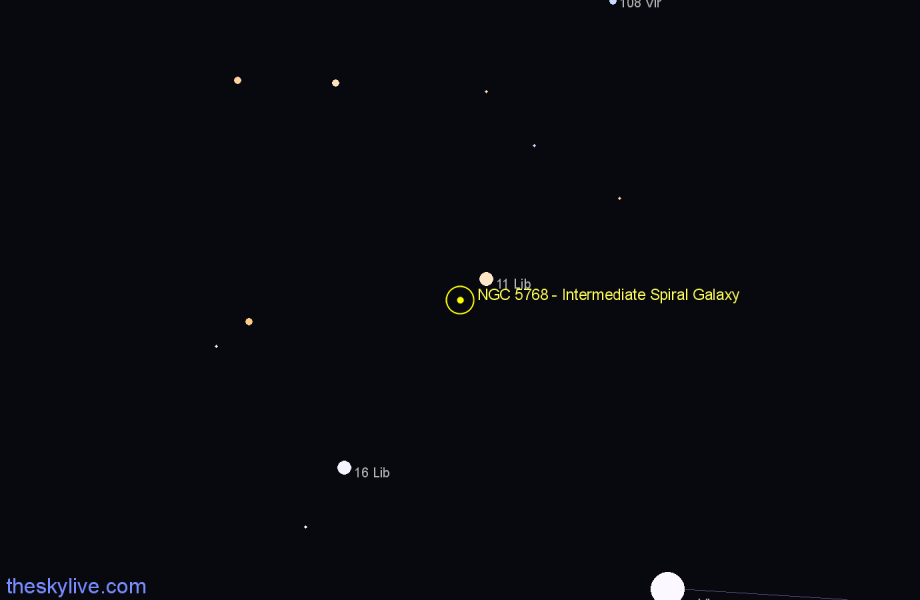

The simplified sky charts below show the position of NGC 5768 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

Finder chart NGC 5768 - Intermediate Spiral Galaxy in Libra star
Simplified finder chart for NGC 5768 - Intermediate Spiral Galaxy in Libra.

Finder chart NGC 5768 - Intermediate Spiral Galaxy in Libra star
Simplified finder chart for NGC 5768 - Intermediate Spiral Galaxy in Libra.

Rise ans set times of NGC 5768 from your location

Location: Greenwich, United Kingdom edit_location_alt
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

Today's NGC 5768 - Intermediate Spiral Galaxy in Libra rise, transit and set times from Greenwich, United Kingdom edit_location_alt are the following (all times relative to the local timezone Europe/London):

Azimuth: 92.5°
Max altitude: 36.0°
Azimuth: 267.5°
NGC 5768 - Intermediate Spiral Galaxy in Libra is below the horizon from Greenwich, United Kingdom
