NGC 6317 - Galaxy

NGC 6317 is a Galaxy in the Draco constellation. NGC 6317 is situated close to the northern celestial pole and, as such, it is visible for most part of the year from the northern hemisphere.

NGC 6317
Galaxy
Draco
  • NGC 6317 is above the horizon from Greenwich, United Kingdom [change]. Its current altitude is 32° above the horizon. See also rise and set times.
  • Given its B magnitude of 16, NGC 6317 is visible only through long exposure photography.
Available Resources for NGC 6317 - Galaxy

Photometric information of NGC 6317

The following table lists the magnitude of NGC 6317 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

16
12.59
11.87
11.44

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 6317.

23.45 mag/arcsec2

Apparent size of NGC 6317

The following table reports NGC 6317 apparent angular size. The green area displayed on top of the DSS2 image of NGC 6317 is a visual representation of it.
0.96 arcmin
0.61 arcmin
44°

Digitized Sky Survey image of NGC 6317

The image below is a photograph of NGC 6317 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5x0.5 degrees (30x30 arcmins).

Image of NGC 6317 -  Galaxy star
/>
DSS2 image of NGC 6317 in the Red band. The green region on the image is a representation of the major (0.96 arcmin) and minor (0.61 arcmin) axes of the object's apparent size.

NGC 6317 - Galaxy morphological classification

NGC 6317 - Galaxy is classified as according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 6317 - Galaxy in the Hubble de Vaucouleurs sequence.

NGC 6317 - Galaxy
Visualization of the morphological classification of NGC 6317 - Galaxy, .
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Celestial coordinates and finder chart of NGC 6317

Celestial coordinates for the J2000 equinox of NGC 6317 are provided in the following table:

17h 08m 59s
+62° 53’ 52”

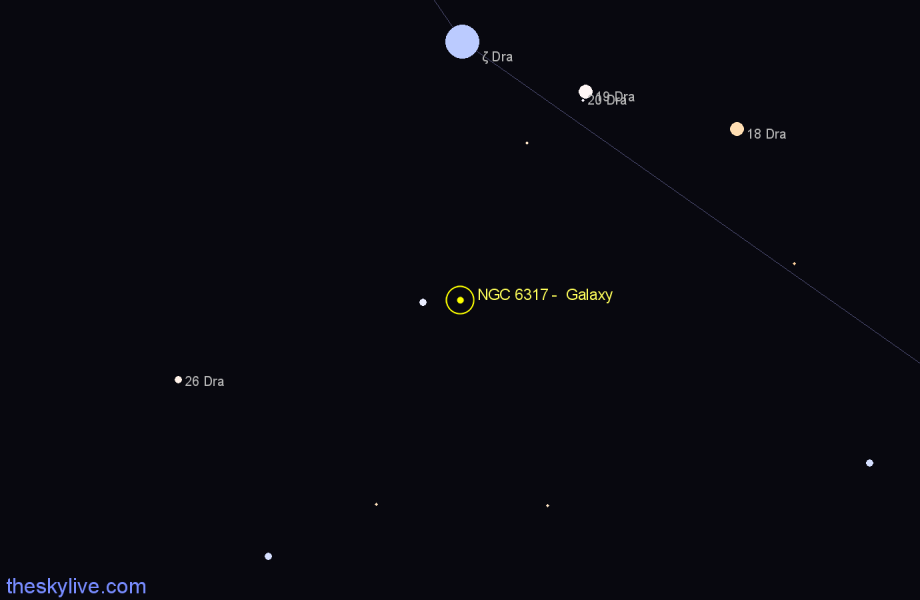

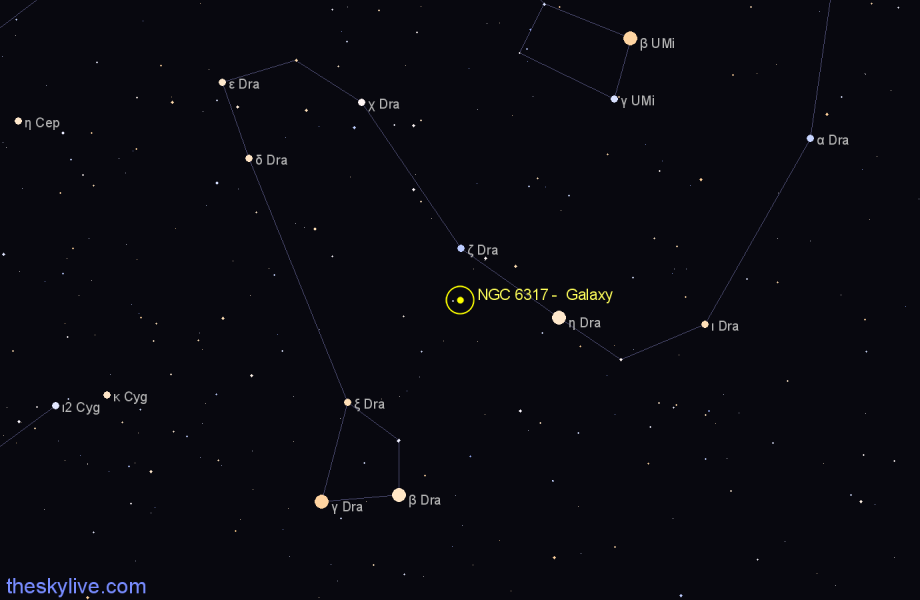

The simplified sky charts below show the position of NGC 6317 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

Finder chart NGC 6317 -  Galaxy star
Simplified finder chart for NGC 6317 - Galaxy.

Finder chart NGC 6317 -  Galaxy star
Simplified finder chart for NGC 6317 - Galaxy.

Rise ans set times of NGC 6317 from your location

Location: Greenwich, United Kingdom [change]
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

NGC 6317 - Galaxy is circumpolar and transits at 19:46 UTC (altitude: 78.6°)
