NGC 6552 - Barred Spiral Galaxy in Draco

Above the horizon.  Circumpolar today
Alt: 51.03°   Az: 322.22°   Direction: North-West

NGC 6552 is a Barred Spiral Galaxy in the Draco constellation. NGC 6552 is situated close to the northern celestial pole and, as such, it is visible for most part of the year from the northern hemisphere. Given its B magnitude of 14.6, NGC 6552 is visible with the help of a telescope having an aperture of 20 inches (500mm) or more.

The image below is a photograph of NGC 6552 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5000x0.5000 degrees (30.00x30.00 arcmins).

Image of NGC 6552 - Barred Spiral Galaxy in Draco star
/>
DSS2 image of NGC 6552 in the Red band. The green region on the image is a representation of the major (1.06 arcmin) and minor (0.73 arcmin) axes of the object's apparent size.

Celestial Coordinates

Apparent

18h 00m 06s
+66° 36’ 54”
05h 04m 27s
23h 04m 34s

J2000

18h 00m 06s
+66° 36’ 54”

Finder Chart

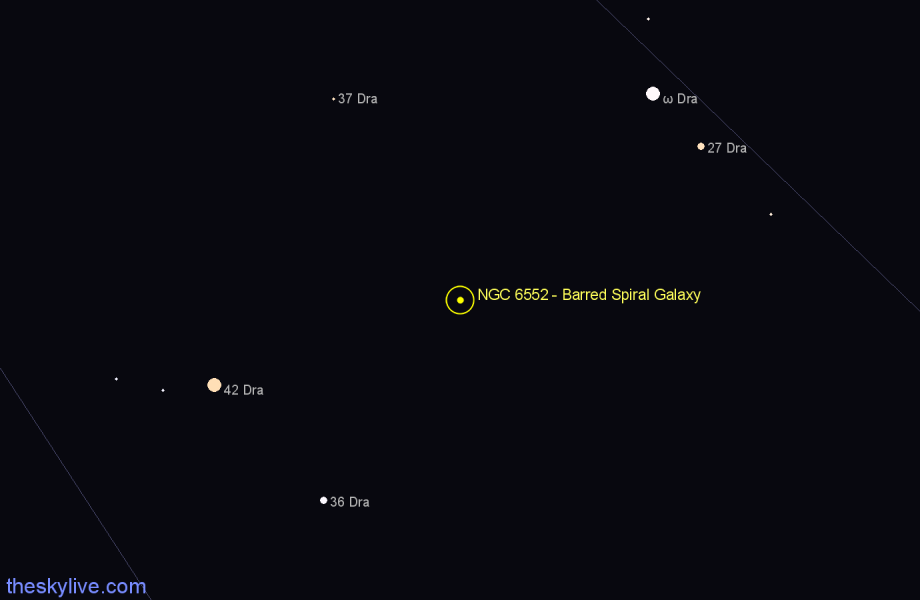

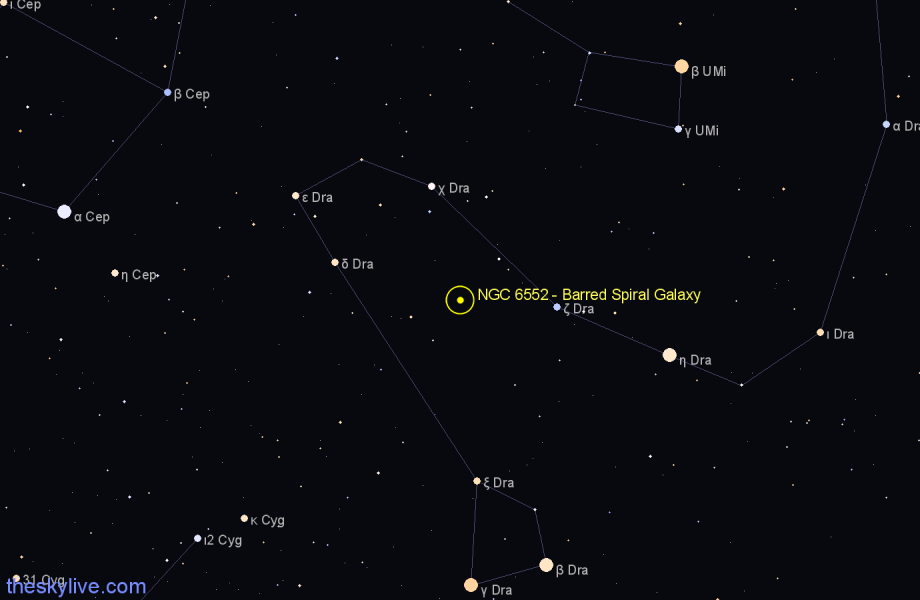

The simplified sky charts below show the position of NGC 6552 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

Finder chart NGC 6552 - Barred Spiral Galaxy in Draco star
Simplified finder chart for NGC 6552 - Barred Spiral Galaxy in Draco.

Finder chart NGC 6552 - Barred Spiral Galaxy in Draco star
Simplified finder chart for NGC 6552 - Barred Spiral Galaxy in Draco.

Photometric Information

The following table lists the magnitude of NGC 6552 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

14.6
11.44
10.73
10.32

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 6552.

23.16 mag/arcsec2

Apparent Size

The following table reports NGC 6552 apparent angular size. The green area displayed on top of the DSS2 image of NGC 6552 is a visual representation of it.
1.06 arcmin
0.73 arcmin
103°

Morphological Classification

NGC 6552 - Barred Spiral Galaxy in Draco is classified as Barred Spiral (Bab) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 6552 - Barred Spiral Galaxy in Draco in the Hubble de Vaucouleurs sequence.

NGC 6552 - Barred Spiral Galaxy in Draco
Visualization of the morphological classification of NGC 6552 - Barred Spiral Galaxy in Draco, Barred Spiral (Bab).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Rise and Set Times

Location: Greenwich, UK
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

NGC 6552 - Barred Spiral Galaxy in Draco is circumpolar and transits at 22:07 UTC (altitude: 74.9°)
