All Constellations »  Canes Venatici »  Deep Sky Objects »

NGC 5394 - Barred Spiral Galaxy in Canes Venatici

Above the horizon.  Rise: 17:28 | Tran: 4:21 | Set: 15:11
Alt: 2.06°   Az: 21.69°   Direction: North-North-East

NGC 5394 is a Barred Spiral Galaxy in the Canes Venatici constellation. NGC 5394 is situated north of the celestial equator and, as such, it is more easily visible from the northern hemisphere. Given its visual magnitude of 13.12, NGC 5394 is visible with the help of a telescope having an aperture of 10 inches (250mm) or more.

The image below is a photograph of NGC 5394 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5000x0.5000 degrees (30.00x30.00 arcmins).

Image of NGC 5394 - Barred Spiral Galaxy in Canes Venatici star
/>
DSS2 image of NGC 5394 in the Red band. The green region on the image is a representation of the major (2.63 arcmin) and minor (1.07 arcmin) axes of the object's apparent size.

Celestial Coordinates

Apparent

13h 59m 38s
+37° 19’ 55”
13h 50m 44s
03h 50m 22s

J2000

13h 58m 33s
+37° 27’ 12”

Finder Chart

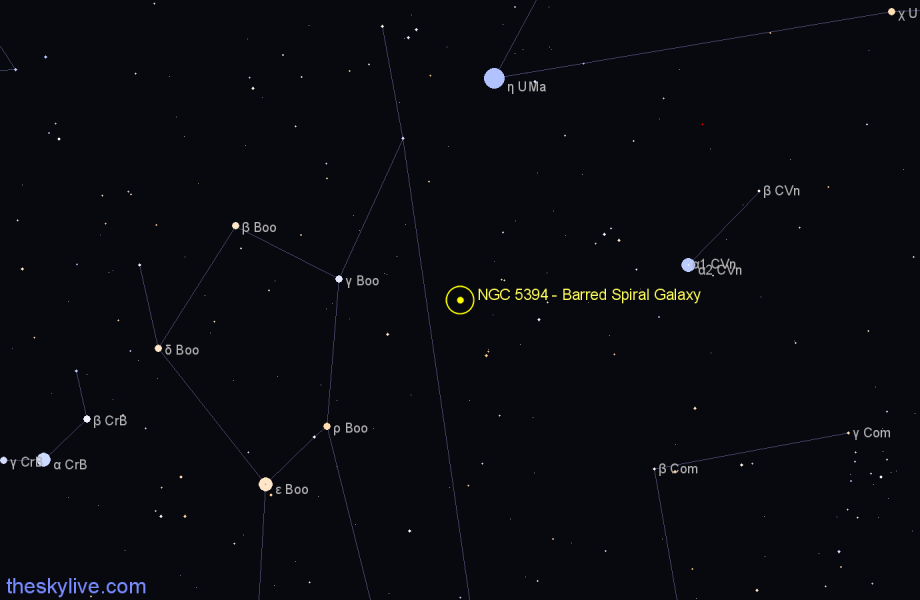

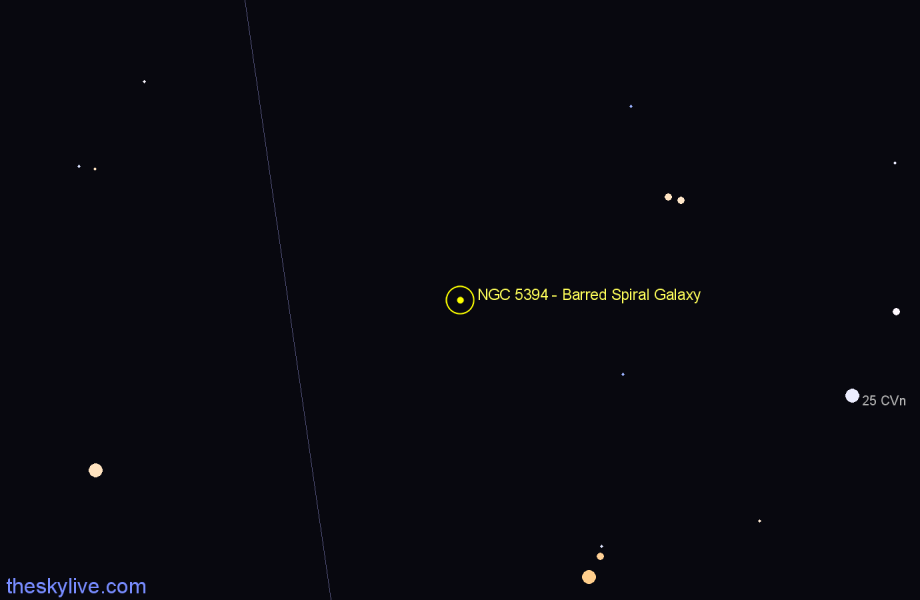

The simplified sky charts below show the position of NGC 5394 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

loader
  Loading map...
Finder chart for NGC 5394 - Barred Spiral Galaxy in Canes Venatici.

loader
  Loading map...
Finder chart for NGC 5394 - Barred Spiral Galaxy in Canes Venatici.

Photometric Information

The following table lists the magnitude of NGC 5394 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

13.7
13.12
11.14
10.39
10.07

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 5394.

23.78 mag/arcsec2

Apparent Size

The following table reports NGC 5394 apparent angular size. The green area displayed on top of the DSS2 image of NGC 5394 is a visual representation of it.
2.63 arcmin
1.07 arcmin
60°

Morphological Classification

NGC 5394 - Barred Spiral Galaxy in Canes Venatici is classified as Barred Spiral (Bb) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 5394 - Barred Spiral Galaxy in Canes Venatici in the Hubble de Vaucouleurs sequence.

NGC 5394 - Barred Spiral Galaxy in Canes Venatici
Visualization of the morphological classification of NGC 5394 - Barred Spiral Galaxy in Canes Venatici, Barred Spiral (Bb).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Rise and Set Times

Location: Greenwich, UK
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

Today's NGC 5394 - Barred Spiral Galaxy in Canes Venatici rise, transit and set times from Greenwich, UK are the following (all times relative to the local timezone Europe/London):

Azimuth: 52.7°
Max altitude: 75.9°
Azimuth: 307.3°
