NGC 5090B - Barred Spiral Galaxy in Centaurus

Altitude: -5.5°   Azimuth: 176.0°   Direction: South

NGC 5090B is a Barred Spiral Galaxy in the Centaurus constellation. NGC 5090B is situated south of the celestial equator and, as such, it is more easily visible from the southern hemisphere.

NGC 5090B
Galaxy
Centaurus

NGC 5090B is below the horizon from Greenwich, United Kingdom edit_location_alt.

Altitude: -5.5°
Azimuth: 176.0°
Direction: South

See also NGC 5090B rise and set times.

Given its B magnitude of 14.03, NGC 5090B is visible with the help of a telescope having an aperture of 14 inches (350mm) or more.

Available Resources for NGC 5090B - Barred Spiral Galaxy in Centaurus

Photometric information of NGC 5090B

The following table lists the magnitude of NGC 5090B in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

14.03

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 5090B.

23.97 mag/arcsec2

Apparent size of NGC 5090B

The following table reports NGC 5090B apparent angular size. The green area displayed on top of the DSS2 image of NGC 5090B is a visual representation of it.
2.39 arcmin
0.85 arcmin
128°

Digitized Sky Survey image of NGC 5090B

The image below is a photograph of NGC 5090B from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5x0.5 degrees (30x30 arcmins).

Image of NGC 5090B - Barred Spiral Galaxy in Centaurus star
/>
DSS2 image of NGC 5090B in the Red band. The green region on the image is a representation of the major (2.39 arcmin) and minor (0.85 arcmin) axes of the object's apparent size.

NGC 5090B - Barred Spiral Galaxy in Centaurus morphological classification

NGC 5090B - Barred Spiral Galaxy in Centaurus is classified as Barred Spiral (Bb) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 5090B - Barred Spiral Galaxy in Centaurus in the Hubble de Vaucouleurs sequence.

NGC 5090B - Barred Spiral Galaxy in Centaurus
Visualization of the morphological classification of NGC 5090B - Barred Spiral Galaxy in Centaurus, Barred Spiral (Bb).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Celestial coordinates and finder chart of NGC 5090B

Celestial coordinates for the J2000 equinox of NGC 5090B are provided in the following table:

13h 20m 17s
-43° 51’ 52”

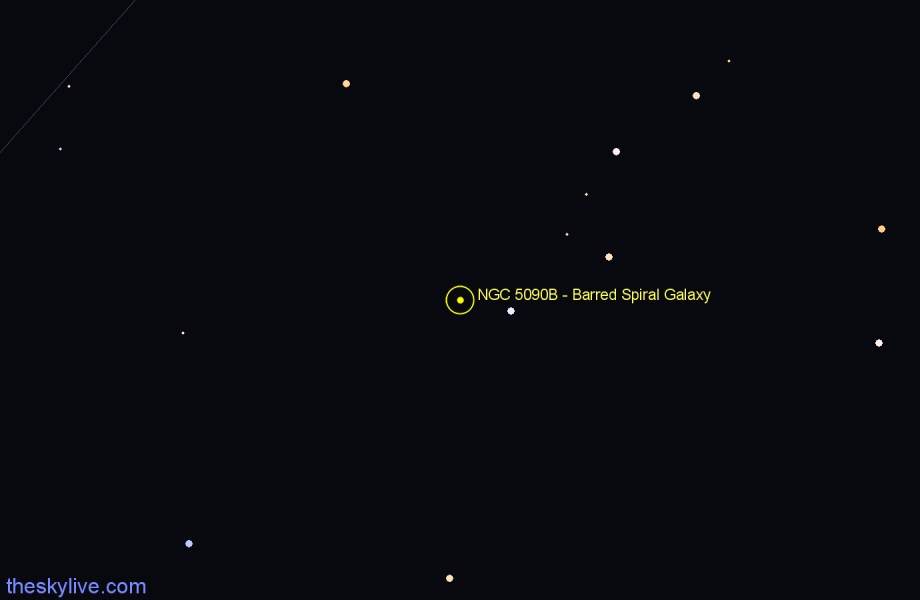

The simplified sky charts below show the position of NGC 5090B in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

Finder chart NGC 5090B - Barred Spiral Galaxy in Centaurus star
Simplified finder chart for NGC 5090B - Barred Spiral Galaxy in Centaurus.

Finder chart NGC 5090B - Barred Spiral Galaxy in Centaurus star
Simplified finder chart for NGC 5090B - Barred Spiral Galaxy in Centaurus.

Rise ans set times of NGC 5090B from your location

Location: Greenwich, United Kingdom edit_location_alt
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

NGC 5090B - Barred Spiral Galaxy in Centaurus is currently not visible from Greenwich, United Kingdom edit_location_alt
