NGC 3527 - Spiral Galaxy in Ursa Major

Below the horizon.  Rise: 7:24 | Tran: 16:13 | Set: 1:05
Alt: -5.62°   Az: 332.99°   Direction: North-North-West

NGC 3527 is a Spiral Galaxy in the Ursa Major constellation. NGC 3527 is situated north of the celestial equator and, as such, it is more easily visible from the northern hemisphere. Given its B magnitude of 15.1, NGC 3527 is visible with the help of a telescope having an aperture of 20 inches (500mm) or more.

The image below is a photograph of NGC 3527 from the Digitized Sky Survey 2 (DSS2 - see the credits section) taken in the red channel. The area of sky represented in the image is 0.5000x0.5000 degrees (30.00x30.00 arcmins).

Image of NGC 3527 - Spiral Galaxy in Ursa Major star
/>
DSS2 image of NGC 3527 in the Red band. The green region on the image is a representation of the major (1.18 arcmin) and minor (1 arcmin) axes of the object's apparent size.

Celestial Coordinates

Apparent

11h 08m 37s
+28° 23’ 40”
09h 56m 20s
21h 04m 57s

J2000

11h 07m 18s
+28° 31’ 40”

Finder Chart

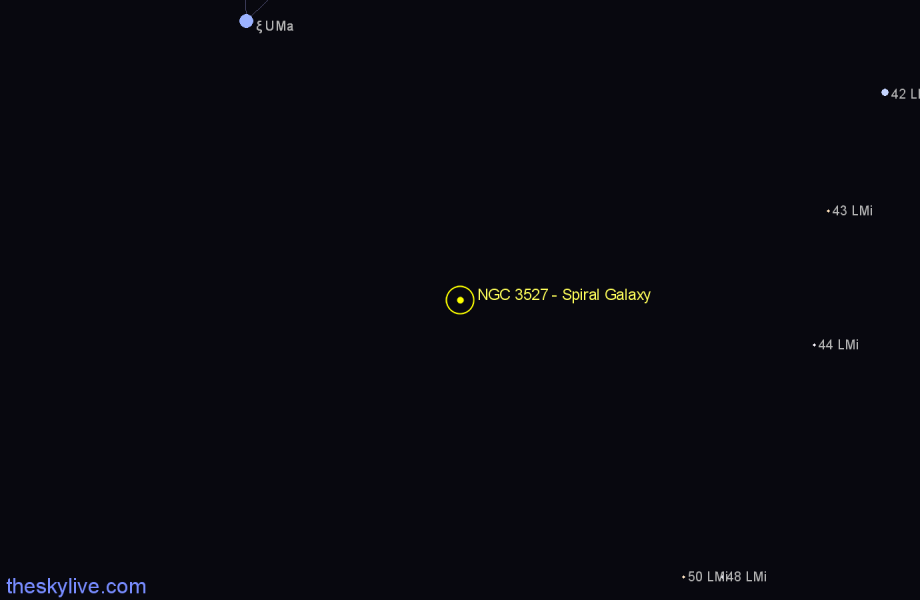

The simplified sky charts below show the position of NGC 3527 in the sky. The first chart has a field of view of 60° while the second one has a field of view of 10°.

Finder chart NGC 3527 - Spiral Galaxy in Ursa Major star
Simplified finder chart for NGC 3527 - Spiral Galaxy in Ursa Major.

Finder chart NGC 3527 - Spiral Galaxy in Ursa Major star
Simplified finder chart for NGC 3527 - Spiral Galaxy in Ursa Major.

Photometric Information

The following table lists the magnitude of NGC 3527 in different bands of the electomagnetic spectrum (when available), from the B band (445nm wavelength, corresponding to the Blue color), to the V band ( 551nm wavelength, corresponding to Green/Yellow color), to the J, H, K bands (corresponding to 1220nm, 1630nm, 2190nm wavelengths respectively, which are colors not visible to the human eye).

15.1
11.59
11
10.72

For more information about photometry in astronomy, check the photometric system article on Wikipedia.

The surface brightess reported below is an indication of the brightness per unit of angular area of NGC 3527.

23.87 mag/arcsec2

Apparent Size

The following table reports NGC 3527 apparent angular size. The green area displayed on top of the DSS2 image of NGC 3527 is a visual representation of it.
1.18 arcmin
1 arcmin
171°

Morphological Classification

NGC 3527 - Spiral Galaxy in Ursa Major is classified as Spiral (SAa) according to the Hubble and de Vaucouleurs galaxy morphological classification. The diagram below shows a visual representation of the position of NGC 3527 - Spiral Galaxy in Ursa Major in the Hubble de Vaucouleurs sequence.

NGC 3527 - Spiral Galaxy in Ursa Major
Visualization of the morphological classification of NGC 3527 - Spiral Galaxy in Ursa Major, Spiral (SAa).
Credits for the background image: Antonio Ciccolella / M. De Leo / CC BY

Rise and Set Times

Location: Greenwich, UK
Latitude: 51° 28’ 47” N
Longitude: 0° 00’ 00” E
Timezone: Europe/London

Today's NGC 3527 - Spiral Galaxy in Ursa Major rise, transit and set times from Greenwich, UK are the following (all times relative to the local timezone Europe/London):

Azimuth: 61.6°
Max altitude: 66.9°
Azimuth: 298.4°
